InfiniteFocus G6 - Verify dimensional accuracy and surface finish with one system





InfiniteFocusG6 is an accurate, fast and universal optical 3D measuring instrument for tolerances in the µm and sub-µm range. Components are measured areal based, in high-resolution regardless of size, material, geometry,
weight, and surface finish. Our new 6th generation of InfiniteFocus offers several proven features and new innovations, combining the functionalities of a surface roughness measurement device (Ra, Rq, Rz/Sa, Sq, Sz) with the features of a coordinate measuring machine. Users measure form and roughness with only one optical sensor.

InfiniteFocus is made for users, focusing on their requirements. It is all about speed, ease of use and efficient workflows

  • Fast axes and innovative optics with modern algorithms ensure short measurement times
  • The MetMaX software sets new standards in usability. Users specify measurements already on the CAD model of a component. A digital twin combined with a virtual measurement simulation enables safe operation of the measuring instrument.
  • Single-button solutions and automated measurement sequences ensure efficient workflows and measurements without user interaction.





 InfiniteFocus G6, Future-proof technologies:



Combining 3 technologies, the optical sensor sets new accuracy standards

  • Advanced Focus-Variation combines the functionalities of a roughness measuring instrument and a coordinate measuring machine. Users measure workpieces with steep flanks, varying reflections and structured roughness. The integrated SmartFlash technology ensures high-resolution measurements of smooth, reflective and highly polished surfaces.
  • Real3D is the key for 360° measurement of complex micro geometries. Based on single measurements from different directions, users obtain a complete 3D data set.
  • Vertical Focus Probing enables the optical lateral probing of components. Users measure holes and vertical flanks (>90°). Thanks to its architecture, the measurement system offers high flexibility for operators. InfiniteFocus measures a wide range of components with only one sensor.







You can discover more about the InfiniteFocus G6



Software MetMaX - Sufficient automation capability for measurement, eliminating the need for users to ask the question, "How do I measure this?"

This is the core objective of the MetMaX software – a fully automated software solution integrated into the InfiniteFocus G6 optical 3D measuring machine. Thanks to MetMaX, the operator is not required to have special in-depth measurement knowledge to run the InfiniteFocus G6 optical 3D measuring machine. All the necessary knowledge is already contained within the MetMaX software, which knows how to measure and how to analyze the 3D data.





Automated measurement solution with a Robot arm: Pick & Place

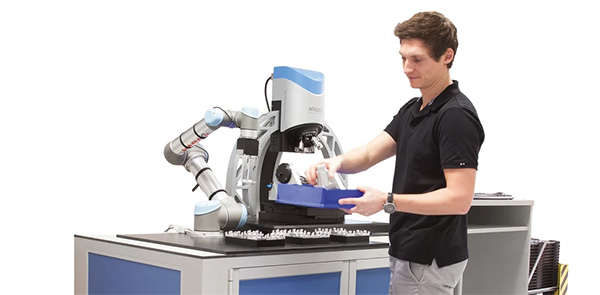

The InfiniteFocus G6 optical 3D measuring machine can be integrated with a robot arm to form an automated system for loading and unloading the measuring sample from the stage, performing measurements, reporting, and classifying the sample – this is also known as the Pick & Place Solution.





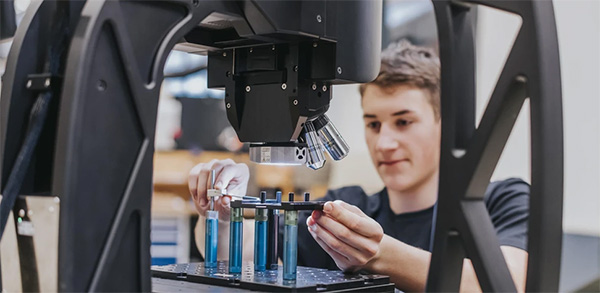

10 Questions about the InfiniteFocus G6 Optical 3D Measuring Machine



The InfiniteFocus G6 optical 3D measuring machine offers fast, robust, and versatile measuring capability, integrating Alicona's most advanced technologies. You can find out more about the InfiniteFocus G6 through 10 questions and answers.





GENERAL SPECIFICATIONS

Measurement principle: Non-contact, optical, three-dimensional
Technologies:
• Advanced Focus-Variation (SmartFlash 2.0)
• Vertical Focus Probing
• Real3D
Number of measurement points:
Single measurement: X: 2160, Y: 2160, X x Y: 4.6 million
ImageField: up to 500 million
Positioning volume(X x Y x Z): 200 mm x 200 mm x 180 mm = 7 200 000 mm³
Positioning volume (R x T): AdvancedReal3DUnit (optional): Motorized rotation: 360° / Motorized tilt: - 15° to + 90°



OBJECTIVE SPECIFIC FEATURES:

Objective name   1900 WD30 800 WD37 800 WD17 400 WD30 400 WD19 150 WD11 80 WD4
Working distance mm 30 37 17.5 30 19 11 4.5
Lateral measurement range (X,Y) mm 3.8 1.6 1.6 0.8 0.8 0.3 0.16
Measurement point distance µm 1.77 0.72 0.72 0.36 0.36 0.14 0.07
Measurement noise nm 80 40 15 20 5 2 1
Vertical resolution nm 250 130 50 80 30 15 10



RESOLUTION AND APPLICATION SPECIFICATIONS

Objective name   1900 WD30 800 WD37 800 WD17 400 WD30 400 WD19 150 WD11 80 WD4
Min. measurable roughness (Ra) µm n.a. 0.7 0.18 0.24 0.12 0.05 0.03
Min. measurable roughness (Sa) µm n.a. 0.35 0.09 0.12 0.06 0.025 0.015
Min. measurable radius µm 12 5 5 3 3 2 1





Practical example, roughness measurement using Infinite Focus G6



Measurement of bone screws with roughness

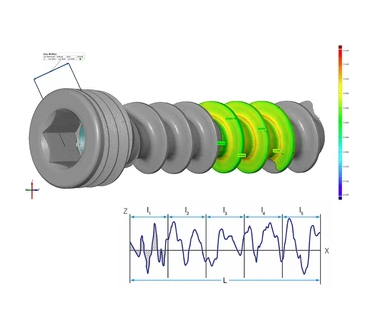

Real3D Technology allows users to acquire the complete form/geometry of measuring samples in a full 360° view. Here, the software performs a direct comparison with the corresponding CAD file. Furthermore, surface roughness provides more comprehensive detailed information.





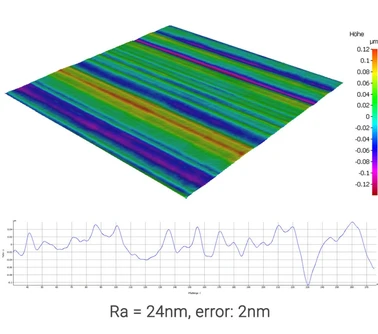

Roughness Sufface



SmartFlash allows high resolution measurements of materials with varying surface characteristics or reflectivity. Modulated light provides optimal illumination throughout the whole measurement area. Users measure glossy, ground, rough, reflective and diffuse
components.
