3D CMM Leader Metrology, Model SF575 Workshop It is a CMM high-efficiency manufacturing workshop.

• SF575 Workshop is a high-performance portable measuring device that operates on the principle of not requiring compressed air. It is fully equipped with a protective casing and dust cover, making it suitable for use in harsh and complex workshop environments.
• SF575 Workshop is a high-precision measuring device within the temperature range of 15-30ºC, making it suitable for installation in various locations within the workshop.
• SF575 Workshop features an open design on three sides around the stone table, making it convenient to take measurements from three directions and to program the integrated robot arm. The control cabinet is integrated into the machine's base, reducing installation space and facilitating easy movement around the workshop.
• SF575 Workshop is designed for users to customize the temperature sensor set.
• The machine comes with built-in automatic software, and users can customize the hardware according to their needs.
• The device is equipped with built-in vibration dampening, ensuring measurement results in a vibrating environment.

Software System
America RationalDMIS software

RENISHAW Probe System
Renishaw tough-trigger probe or high precision scanning probe
Renishaw Probe Styli Kit

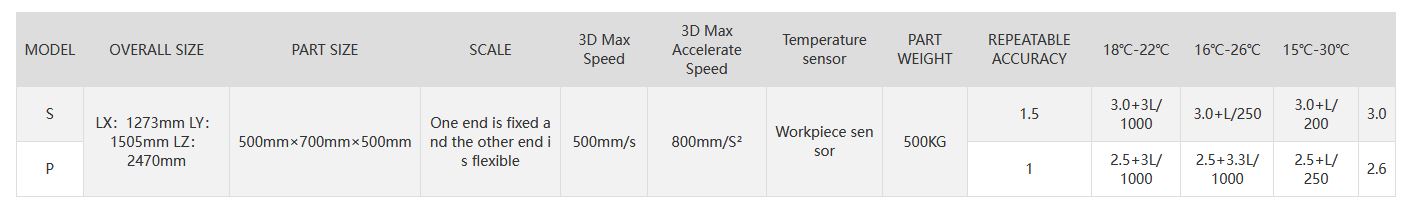

Technical specifications:

 MTECHNOLOGY is the official distributor of Leader Metrology 3D CMM measuring machines in Vietnam
