Leader Metrology 3D CMM, Model Tornado, features an X axis bridge and Z axis made of a special aviation aluminum alloy.

Leader Metrology 3D CMM, Model Tornado, is a bridge-type CMM. The Tornado features an X bridge and a Z axis made of aviation aluminum alloy, meets customer requirements for high measurement efficiency.

• Tornado features an advanced drive system that ensures durability and smooth operation. It uses a high-power DC motor combined with a premium reduction system, capable of quickly accelerating the movement of the axes, helping to maximize measurement efficiency.
• Four-sided air-floating structure used in Y axis, eliminating the movement of torsion pendulum to ensure that the machine's high rigidity, and high stability.
• Tornado is designed in a variety of flexible sizes to meet the stringent requirements for precise measurement in fields such as precision casting, precision machining CNC, mold manufacturing, jigs, electronic components, vv...
• Precision triangular beam technology is applied to Axis x, with aviation grade aluminum alloy, featuring lower center of gravity, better mass-rigidity ratio and more reliable motion relative to rectangular and cross beams.

Software System
America RationalDMIS software.

RENISHAW Probe System
Renishaw tough-trigger probe or high precision scanning probe.
Renishaw Probe Styli Kit.

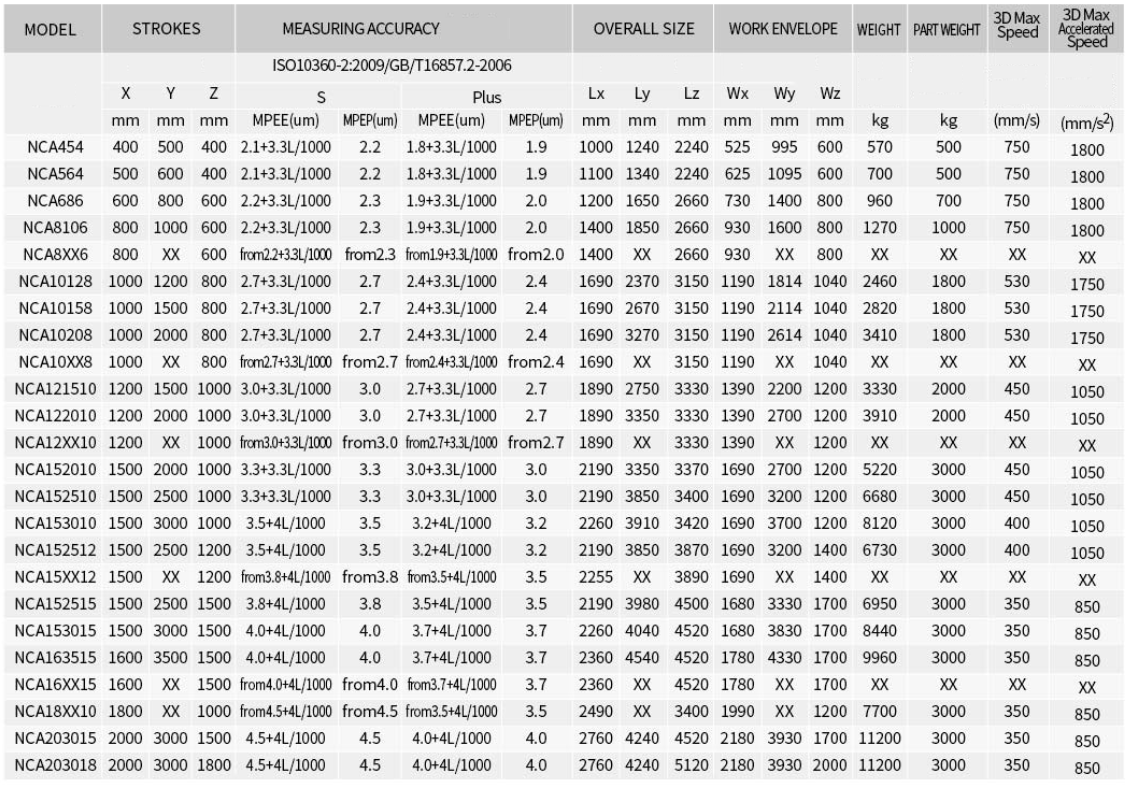

Technical specifications:

Power Voltage：220V (attached UPS)
Temperature Range：18-22°C
Hourly Temperature：1℃/h
Air Pressure：0.5-1.0Mpa
Filter Accuracy：0.3μm
Air Supply：0.3-0.45m³/min
Relative Humidity：25%-65%
